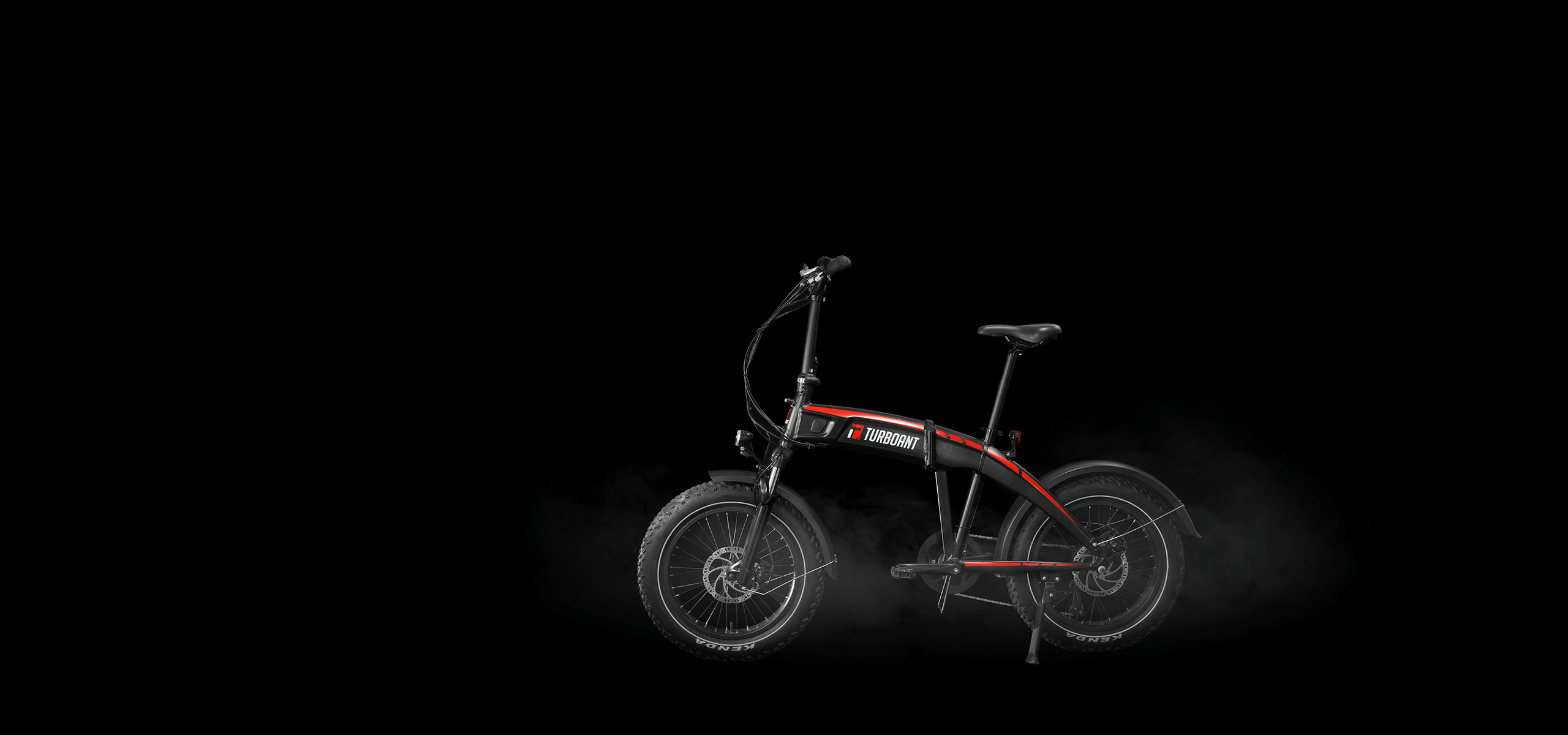

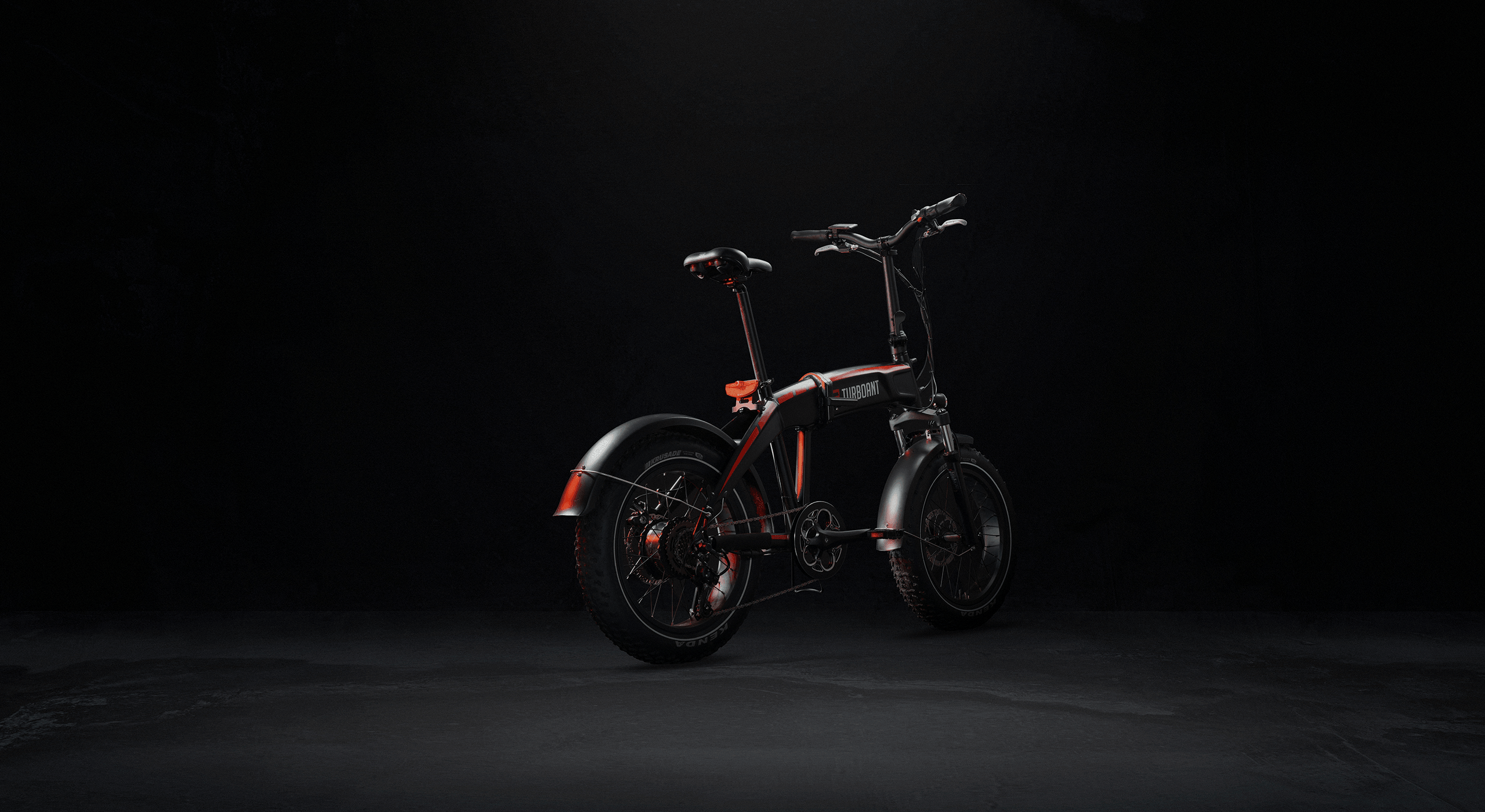

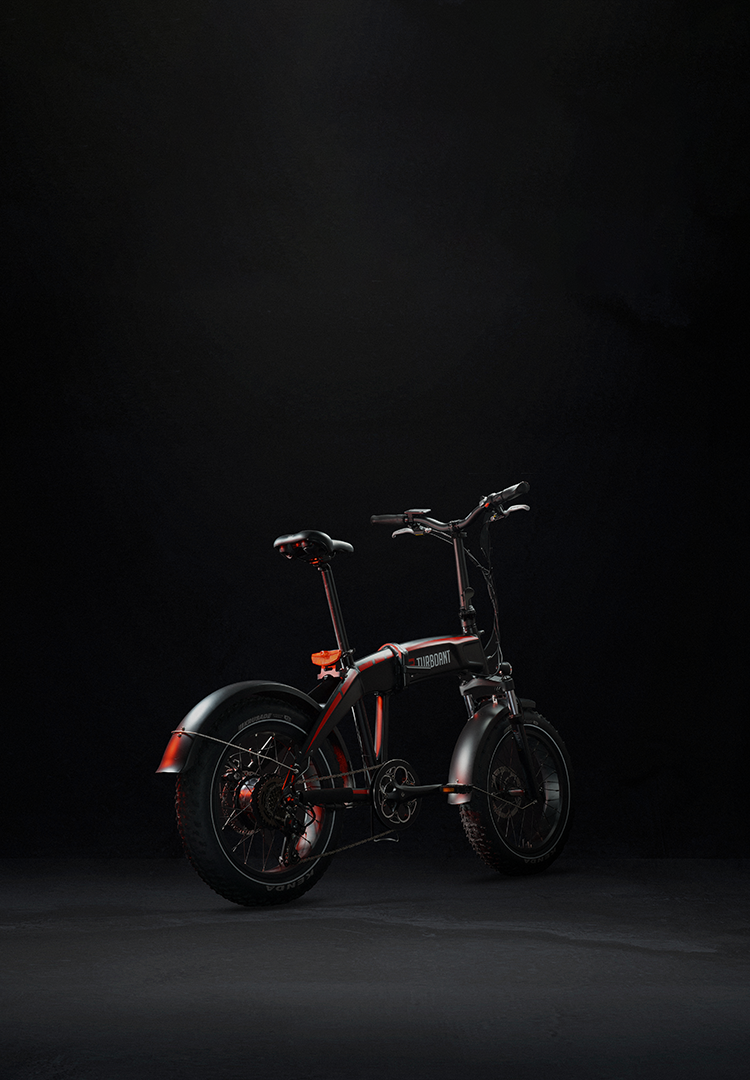

Swift S1 Folding Fat Tire Electric Bike

Specifications

• Technical Specifications

  Hub Motor	750 W Brushless Gear Motor	Recommended Rider Height	5'3''–6'4'' (1.6–2 m)

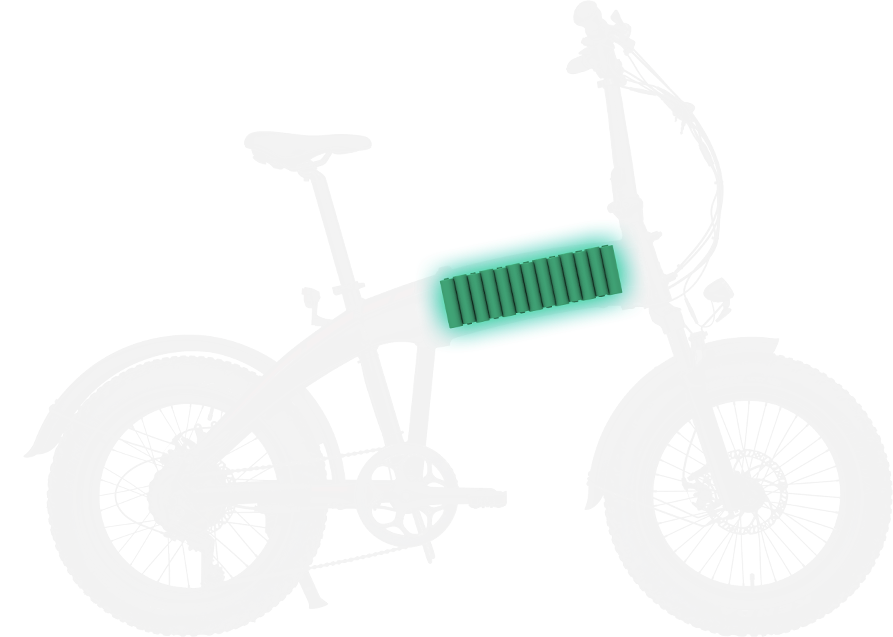

  Lithium-Ion Battery	48 V 14 Ah	Controller	48 V 18 A

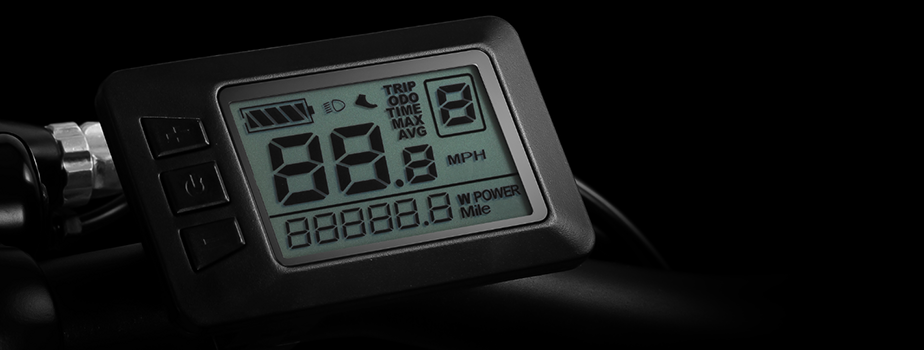

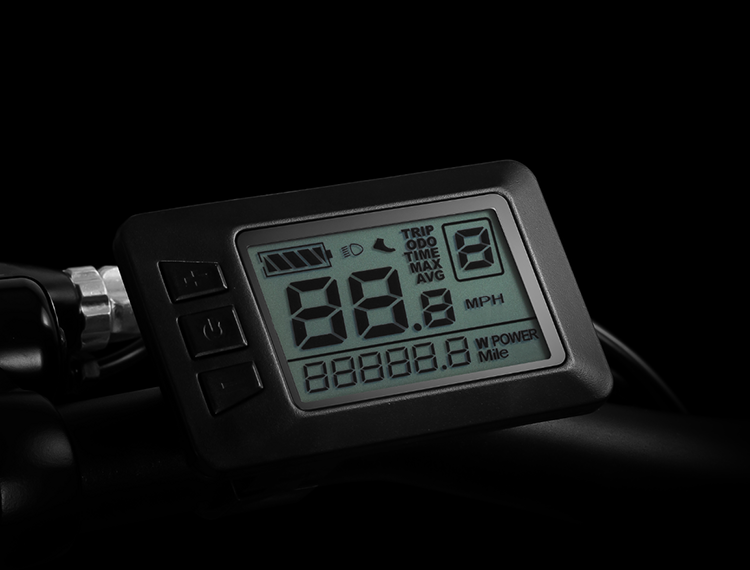

  Charger	48 V 2 A	Display	LCD Display
  Max. Load	264 lb (120 kg)	Weight	68 lb (30.8 kg)
  Range	35–60 Miles (56–97 km)	Pedal Assistance	0-5 Level

• Components

  Tire	20 × 4" Kenda fat tires	Front Fork	Adjustable alloy front fork

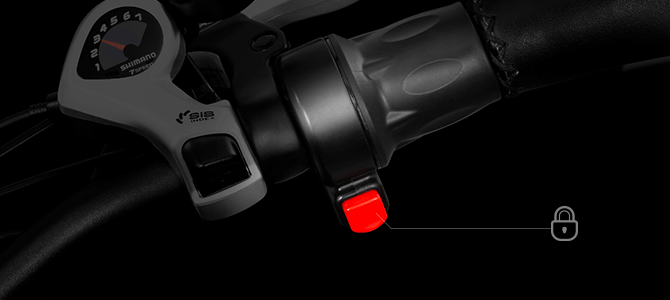

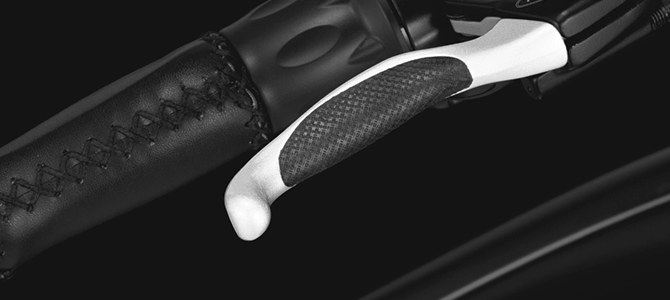

  Brake Lever	Tektro aluminum alloy grip lever	Throttle	Half-twist throttle
  Rear Light	Brake taillight	Pedal	Borita pedal
  Freewheel	Shimano freewheel	Frame	Aluminum alloy 6061

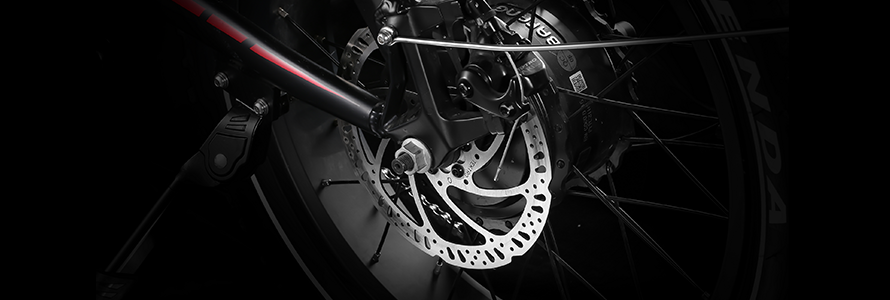

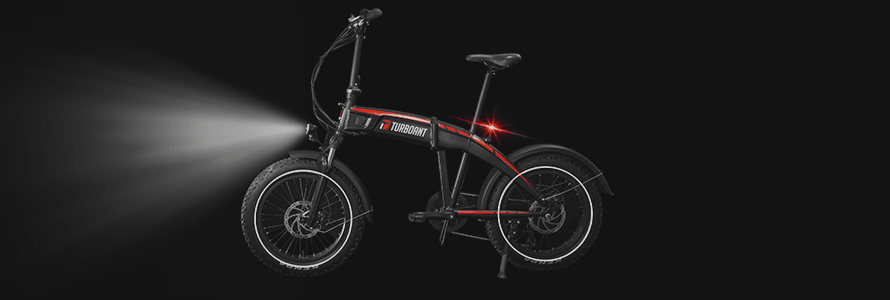

  Brake	Tektro Aries brake (7.1 in/180 mm)	Front Light	48 V LED light
  Chain	KMC chain	Saddle	Selle Royal SR-A020D
  Stem	Promax MA-593S	Seat Post	Zoom seat post (diameter 1.25 in/31.8 mm and length 13.8 in/350 mm)
  Crank	Prowheel 42T forged alloy (6.7 in/170 mm)	Kickstand	Aluminum alloy
  Gear	Shimano 7-speed derailleur	Spoke	12-gauge stainless steel

  Note: Bicycle components may differ from what is listed, but our high-quality standards are ensured at all times.

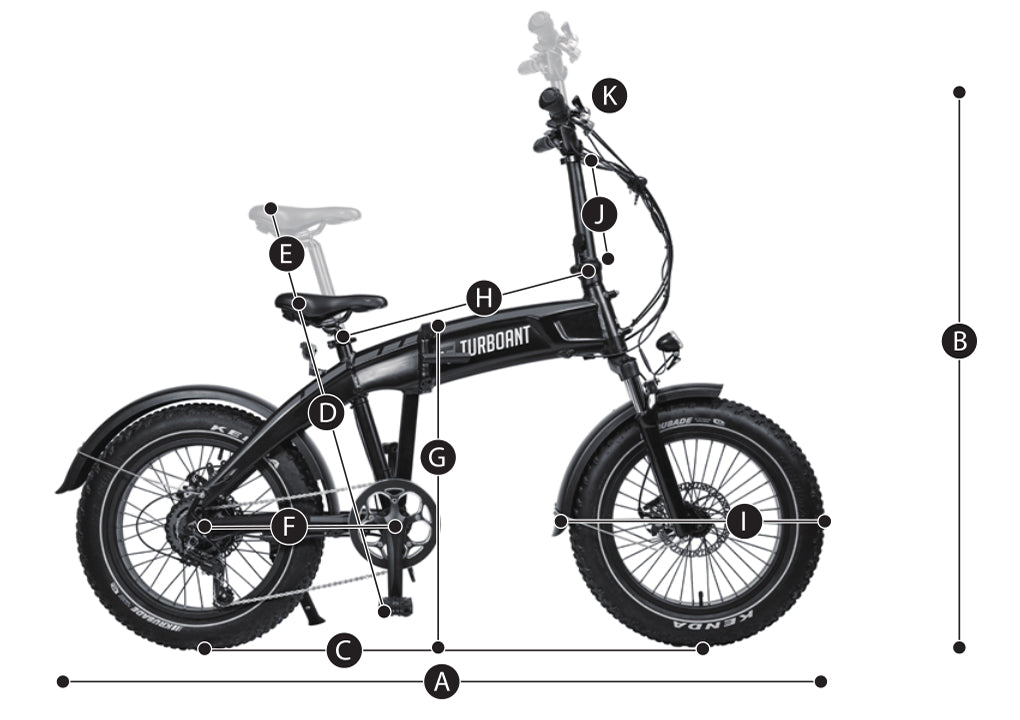

• Geometry



  Total Length	68 in (172.72 cm)
  Handlebar Height	44.9 -51.2 in (114-130 cm)
  Wheelbase	46 in (116.84 cm)
  Minimum Seat Height	28.5 in (72.39 cm)
  Maximum Seat Height	36.5 in (92.71 cm)
  Chain Length	18 in (45.72 cm)
  Standover Height	30 in (76.2 cm)
  Top Tube Length	26.5 in (67.31 cm)
  Wheel Diameter	22.5 in (57.15 cm)
  Head Tube Length	7 in (17.78 cm)
  Handlebar Length	25 in (63.5 cm)

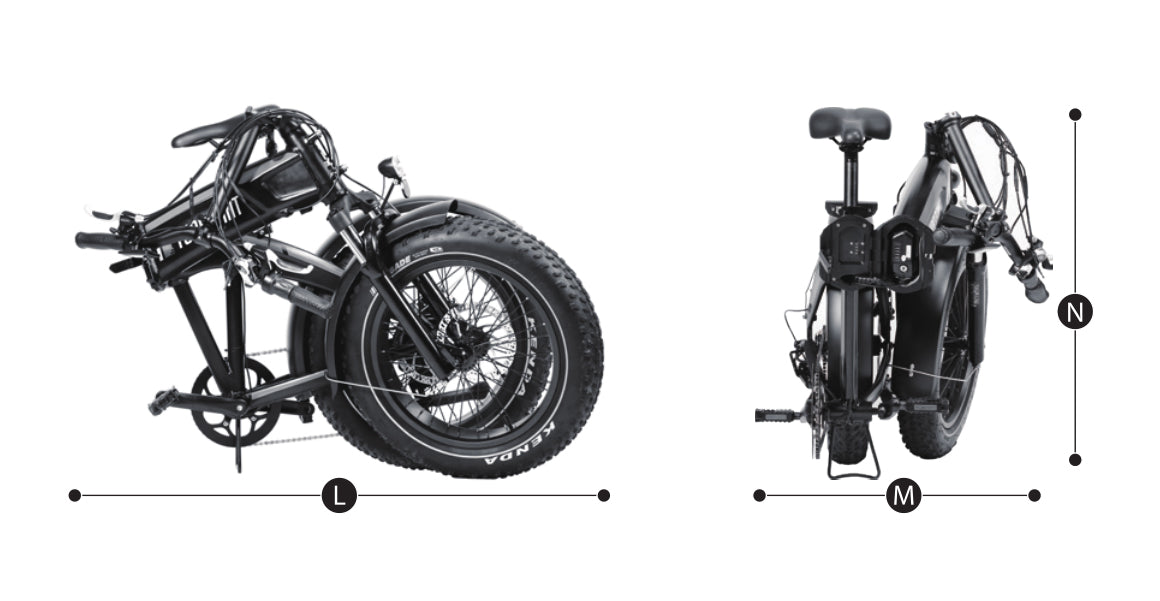

  Length	38 in (96.52 cm)
  Width	23.5 in (59.69 cm)
  Height	31 in (78.74 cm)

• Packaging



  Quick release lever x 1



  Fender x 1



  Front wheel x 1



  Headlight x 1



  90% assembled E-bike



  Assembly Toolkit x 1



  Keys x 2



  Pedals x 2



  Charger x 1

  Note: The e-bike shown has been completely assembled. You will receive a 90% preassembled e-bike and will need to install the front wheel.

• Q & A

  How far can I go on a single charge?

  This Turboant e-bike has a range of up to 60 miles if you fully charge the battery. However, the actual range depends on various factors such as terrain types, wind, and load. We recommend you follow riding instructions in the user manual to maximize your riding range.

  Is this battery removable?

  Yes. You can take out the battery for charging or storage. Please be careful when removing this battery from the bicycle frame in case of damage. For details, please refer to the user manual.

  What is the lifespan of the battery?

  This battery has a lifespan of 3 years. However, its lifespan will be influenced by various factors such as charging operation, riding habits, and battery maintenance. It’s strongly recommended that you follow the user manual for battery operation and maintenance.

  How long does it take to fully charge the battery?

  A full charge takes up to 7 hours. You can read the LED lights to check the battery level when the battery is being charged.

  Which terrain type is suitable for this e-bike?

  Fat tires enable this type of e-bikes to perform well in all terrain types, such as city roads, rugged roads, and beaches.

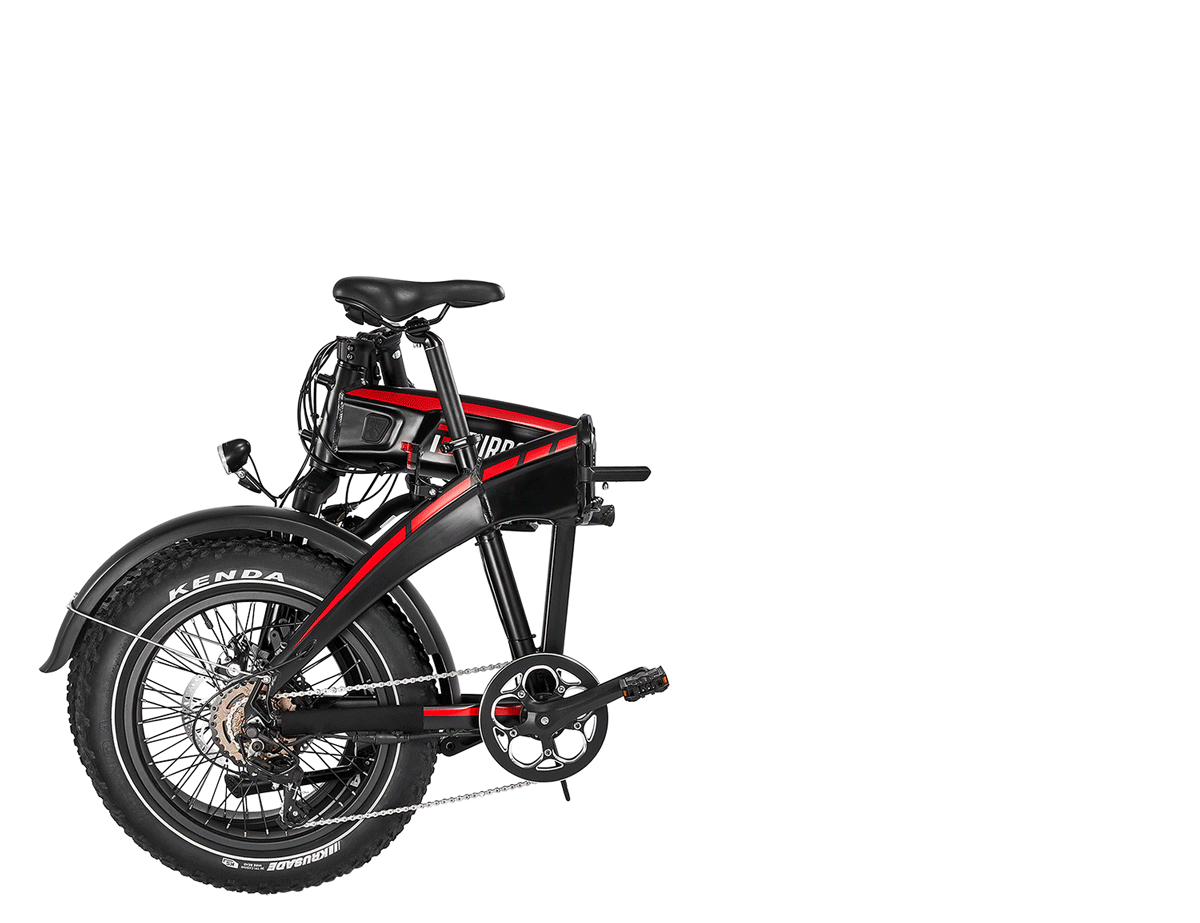

  Can this e-bike be folded?

  Yes! You can fold this e-bike in seconds by following the instructions in the user manual, allowing you to take it whenever and wherever you want.

  Can this e-bike still function as a regular bicycle when the battery runs out?

  Yes. If the battery dies, you can still ride this e-bike as a normal bicycle.

  How can this e-bike reach the maximum speed?

  This e-bike can reach the maximum speed of 20 mph with electric power only. But when you use pedal assistance, it can exceed 20 mph and even reach 30 mph with the highest level of pedal assistance.

  How can I achieve the maximum mileage?

  You can take measures listed below to reduce negative impact and achieve a higher mileage:
  1. Inflate tires to the specified pressure range.
  2. Avoid frequent braking during your riding.
  3. Use pedal assistance more and throttle power assistance less.
