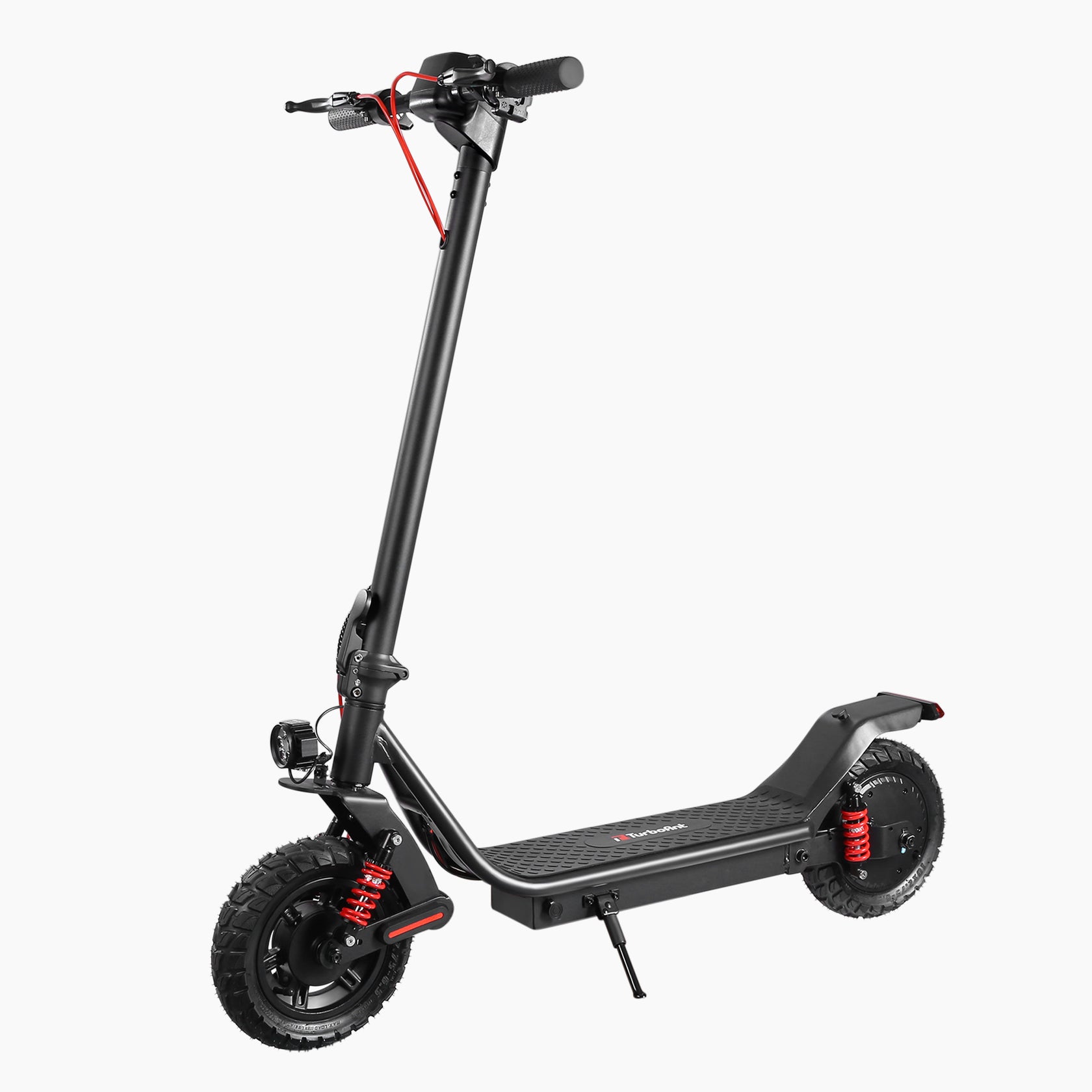

R9 All-Terrain Electric Scooter
Bundle Offers
- Highlights
- Specifications
- Packaging
- Q & A
- Model Comparison
- Reviews
Conquer All Roads with Speed and Comfort
Enjoy an effortless, delightful cruise at high speeds on every terrain.
500 W
Brushless Motor
28 mph
Maximum Speed
35 mi
Maximum Range
12.5 Ah
Lithium Battery
10-Inch
All-Terrain Tires
Front & Rear
Dual Suspensions
20%
Climb Capability
275 lb
Load Capacity
Energetic Rides, Elevated Performance
Enjoy the full speed of 28 mph with ease, or a leisurely pace with better energy efficiency.
Powerful 500 W Motor
The breathtaking power is always ready to deliver a rapid, thrilling acceleration.
Remarkable 35-Mile Range
Uninterrupted explore of the city or countryside offered on a single full charge.
12.5 Ah Premium Battery
Constructed with top-grade lithium cells with sustained reliability and efficiency.
20% Hill Climbing Ability
Ride with confidence on steep inclines and other challenging terrains.
Go Beyond the Pavement
Travel safely and comfortably both on city streets and in rugged environments.
Travel safely and comfortably both on city streets and in rugged environments.
Front and Rear Suspension Springs
Effectively cushion road unevenness to provide added smoothness on your journey.
10-Inch All-Terrain Pneumatic Tires
The air-filled, versatile tires guarantee traction, stability and comfort on all surfaces.
Enhanced Lighting System
Featuring a 5 W LED headlight, conspicuous taillight and rear turn signals, the R9 makes you easily visible on the trip.
More Thoughtful Designs
Dual Brakes
Reliable brakes on both front and rear wheels ensure a safe and timely stop.
275 lb Load Capacity
The scooter’s sturdy frame is able to carry all riders and their belongings safely.
6.7-Inch Wide Deck
The spacious, anti-slip deck allows your both feet in a secure, comfy position.
23.2-Inch Handlebar Width
The extended handlebar offers superior control and heightened maneuverability.
Foldable Structure
With a quick folding mechanism, the e-scooter is convenient to transport and store.
Ride Anywhere, Anytime
Specifications
- Dimensions & Components
-
Unfolded Dimensions 44.88 × 23.23 × 47.24 in
(1140 × 590 × 1200 mm)
Frame Material Aluminum alloy Folded Dimensions 44.88 × 23.23 × 20.47 in
(1140 × 590 × 520 mm)
Tire (Front & Rear) 10-inch all-terrain pneumatic tires Net Weight 55.12 lb (25 kg) Waterproof Level IP54 Handlebar Width 23.2 in (59 cm) On-Board Computer LCD display Deck Length 19.7 in (50 cm) Safety Warning Bell Deck Width 6.7 in (17 cm) Headlight 5 W white LED Ground Clearance 4.72 in (120 mm) Taillight Red LED Maximum Load 275 lb (125 kg) USB Charging Port (for Phone) DC 5V 1A
- Motor & Performance
-
Motor Type Rear Brushless DC motor Maximum Climb Angle 20% (affected by rider's weight, weather and road condition)
Motor Power 500 W Braking System Electronic brake and front & rear drum brake Maximum Range 35 miles (56 km) Braking Distance 22-32 ft (7-10 m) on dry surface Maximum Speed 28 mph (45 km/h) Riding Mode Mode 1 (10 mph), Mode 2 (20 mph), Mode 3 (28 mph)
- Battery
-
Type Lithium-ion Charger's Input Voltage AC 100-240 V, 50-60 Hz Mount Under the deck Charging Time 6-8 hours Output Voltage DC 54.6 V Storage Temperature -4 to 113°F (-20 to 45°C) Capacity 12.5 Ah (600 Wh) Maximum Storage Time 30 days after a full charge Charging Voltage DC 54.6 V, 2 A
Packaging
-
1 x R9 Electric Scooter (with Battery)
-
1 x Charging Adapter
-
1 x Valve Adapter
-
1 x Set of Tools for Assembly
-
1 x User Manual
Q & A
Is the TurboAnt R9 suitable for off-road riding?
How fast can the TurboAnt R9 go?
Model Comparison
R9$529.98 |
M10 Pro$379.98 |
X7 Max$409.98 |
M10 Lite$299.98 |
|
Motor |
500 W rear brushless DC motor | 350 W front hub motor | 350 W front hub motor | 350 W front hub motor |
Maximum Range |
35 miles (56 km) | 30 miles (48 km) | 32 miles (52 km) (pneumatic tire model) 30 miles (48 km) (honeycomb tire model) |
15.5 miles (25 km) |
Top Speed |
28 mph (45 km/h) | 20 mph (32 km/h) | 20 mph (32 km/h) | 16 mph (26 km/h) |
Load Capacity |
275 lb (125 kg) | 220 lb (100 kg) | 275 lb (125 kg) | 220 lb (100 kg) |
Net Weight (with Battery) |
55.12 lb (25 kg) | 36.37 lb (16.5 kg) | 34.2 lb (15.5 kg) (pneumatic tire model) 35.97 lb (16.3 kg) (honeycomb tire model) |
30.86 lb (14 kg) |
Climb Ability |
20% | 15% | 15% | 15% |
Deck Width |
6.7 in (17 cm) | 6.3 in (16 cm) | 4.7~6.7 in (12~17 cm) | 6.3 in (16 cm) |
Tire (Front & Rear) |
10-inch all-terrain pneumatic | 8.5-inch pneumatic | 10-inch pneumatic or 10-inch honeycomb | 8.5-inch pneumatic |
USB Phone Charging Port |
Yes (DC 5V 1A) | Yes (DC 5V 1A) | No | Yes (DC 5V 1A) |
Battery Capacity |
12.5 Ah (600 Wh) | 10.4 Ah (374 Wh) | 10 Ah (360 Wh) | 6.6 Ah (238 Wh) |
Charging Time |
6-8 hours | 6 hours | 6 hours | 4-5 hours |
Battery Mount |
Fixed under the deck | Fixed under the deck | Detachable on the stem | Fixed under the deck |
Charging Method |
Charging on the scooter | Charging on the scooter | Charging on the scooter or while detached | Charging on the scooter |
Folded Dimensions (L/W/H) |
44.88 x 23.23 x 20.47 in (1140 x 590 x 520 mm) |
44.49 × 19.69 × 20.48 in (1130 × 500 × 520 mm) |
45.3 × 16.5 × 20.1 in (1150 × 420 × 510 mm) |
44.49 × 19.69 × 20.48 in (1130 × 500 × 520 mm) |
Unfolded Dimensions (L/W/H) |
44.88 x 23.23 x 47.24 in (1140 x 590 x 1200 mm) |
44.49 × 19.69 × 45.87 in (1130 × 500 × 1165 mm) |
45.3 ×16.5 × 49.2 in (1150 × 420 × 1250 mm) |
44.49 × 19.69 × 45.87 in (1130 × 500 × 1165 mm) |
Water Resistance |
IP54 | IP54 | IPX4 | IP54 |
Braking System |
Drum & electronic brake | Disc & electronic brake | Disc & electronic brake | Disc & electronic brake |
